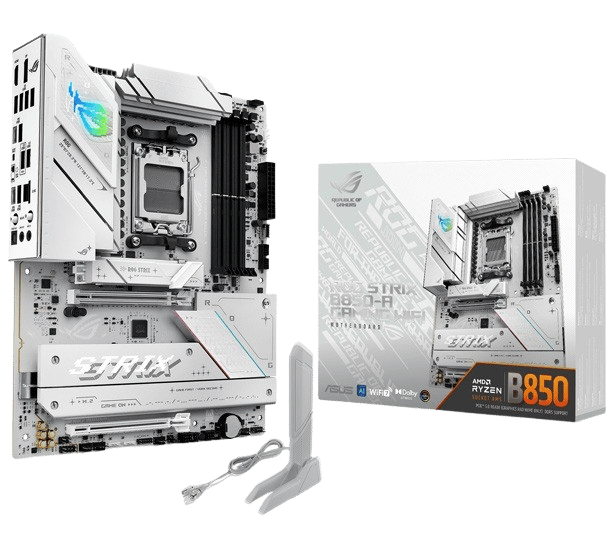

ASUS ROG Strix B850-A Gaming WIFI
AM5-moderkort
Snabbfakta
- ChipsetAMD B850
- FormfaktorATX
- InternminnestypDDR5
- Antal M.24 st
- RAID-stödJa
- Trådlöst nätverkJa
Lagerinformation
Webblager
Butikslager
Köpinformation
Betala senare
Mer infoTillbehör
4,8 av 5 stjärnor.
4,7 av 5 stjärnor.
4,3 av 5 stjärnor.
Recensioner (4)
2
Är du nöjd med din produkt, skriv en recension och låt alla veta!
Flikar - Mer info (markerad), Specifikationer, Jämför, Frågor och svar
ROG STRIX B850-A GAMING WIFI
Elevate your build with the ROG Strix B850-A Gaming WiFi. Featuring a sleek white PCB and support for AMD Ryzen™ 9000 Series processors, this motherboard delivers the power and connectivity needed for advanced AI applications. With DDR5 support, full PCIe 5.0 capabilities, USB 20Gbps port, and WiFi 7, it's the ultimate blend of style and performance.
-
Ready for Advanced AI PCs: Designed for the future of AI computing, with the power and connectivity needed for demanding AI applications
-
AMD AM5 Socket: Ready for AMD Ryzen™ 9000, 8000 and 7000 series desktop processors Intelligent Control: ASUS AI Advisor, AI Networking II and AEMP to simplify setup and improve performance
-
Robust Power Solution: 14+2+2 power solution rated for 80A per stage with an 8+8-pin ProCool power connector, high-quality alloy chokes, and durable capacitors to support multi-core processors
-
Optimized Thermal Design: Massive heatsinks bridged to the VRMs with high-conductivity thermal pads and an integrated I/O cover
-

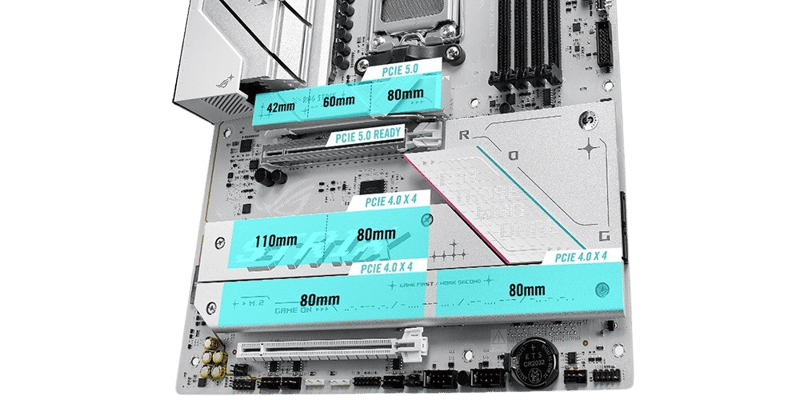

Latest M.2 Support: One onboard PCIe® 5.0 M.2 slot and three PCIe 4.0 M.2 slots, all with substantial cooling solutions
-

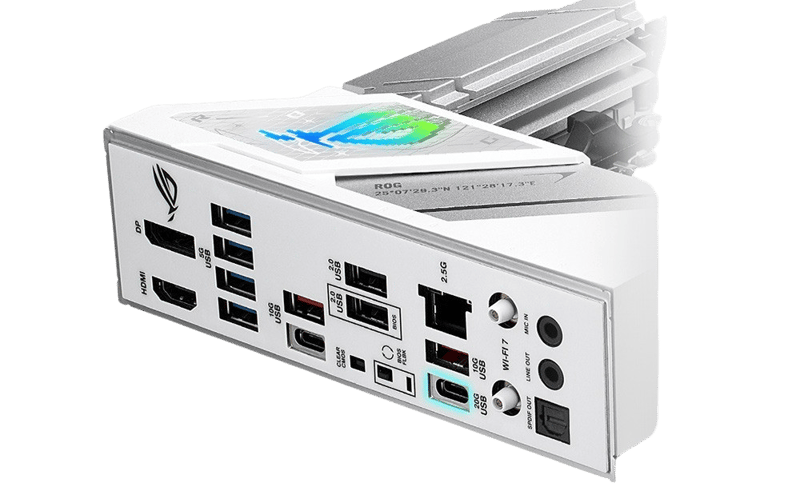

Abundant Connectivity: USB 20Gbps Type-C®, USB 10Gbps Type-C®, USB 10Gbps Type-C® front-panel connector, six additional USB 5Gbps ports, PCIe 5.0 x16 SafeSlots, HDMI™ port and DisplayPort port
-
High-Performance Networking: On-board WiFi 7 (802.11be) with Intel 2.5 Gb Ethernet
-
DIY Friendly Design: PCIe Slot Q-Release Slim, M.2 Q-Latch, M.2 Q-Release, M.2 Q-Slide, Q-Antenna, Q-Dashboard, Q-LED, BIOS FlashBack™ button, Clear CMOS button and pre-mounted I/O shield
-
Immersive Audio: ROG SupremeFX ALC4080 codec with Savitech SV3H712 amplifier, along with Dolby Atmos®
-
Unmatched Personalization: ASUS-exclusive Aura Sync RGB lighting, including three addressable Gen 2 headers
-
Renowned Software: ASUS DriverHub, TurboV Core, ASUS GlideX, HWiNFO, Norton 360 for Gamers (60-day free trial), bundled 60-day AIDA64 Extreme trial subscription and intuitive UEFI BIOS dashboard
ASUS AI Intelligence

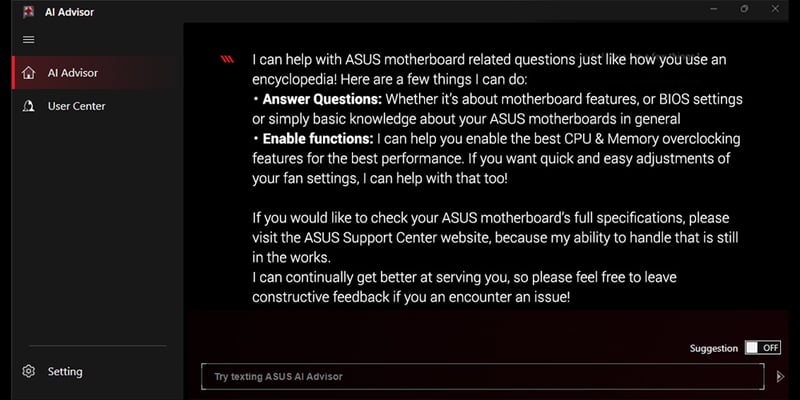

ASUS AI ADVISOR
Using AI technology to understand natural-language questions or scenario descriptions, ASUS AI Advisor allows users to explore the functionality and advanced features of ASUS motherboards in a simple and straightforward way.
Availability of ASUS AI Advisor may vary by region.

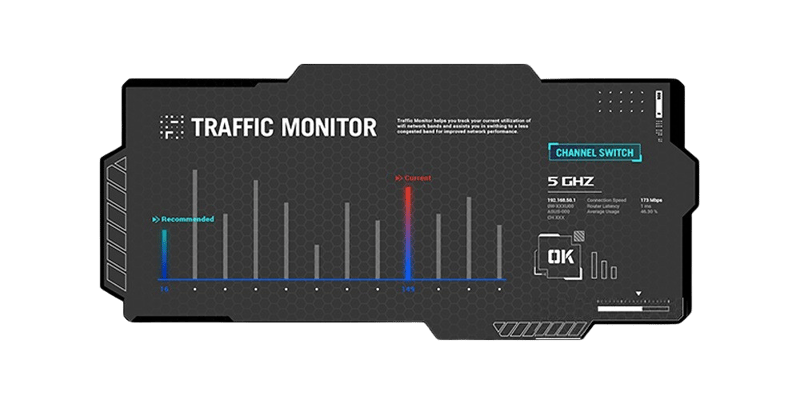

AI Networking II
AI Networking II combines intelligent technologies to continuously optimize network performance, provide trustworthy and seamless connectivity, and unleash the full speed of WiFi 7*.
Features may vary by model.
EZ PC DIY

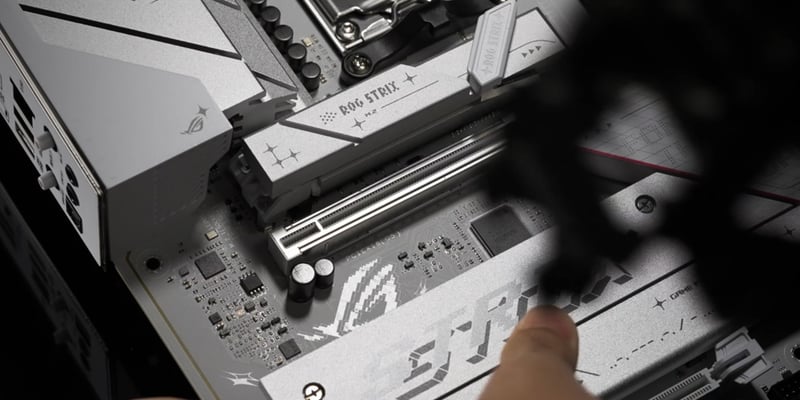

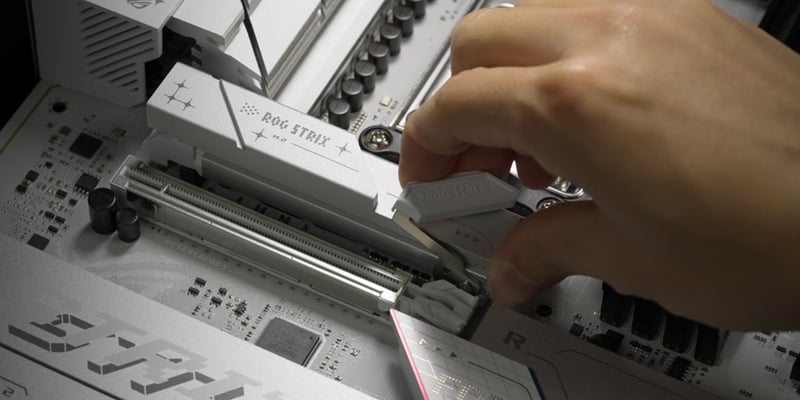

PCIE® SLOT Q-Release Slim
With PCIe® Slot Q-Release Slim, simply tilt the card toward the latching mechanism to automatically unlock it from the PCIe slot. This makes upgrades and maintenance easier than ever before. Users will no longer need to fiddle with a tricky latch or even press a button to release their graphics card from the slot.
M.2 Q-RELEASE
The M.2 heatsink features a convenient switch* to quickly remove it, eliminating the need for tiny screws during SSD installation. Its strong locking mechanism also provides a snug contact surface, helping to ensure reliable heat dissipation for your SSD.
Switch may be a lever or button, depending on motherboard model.

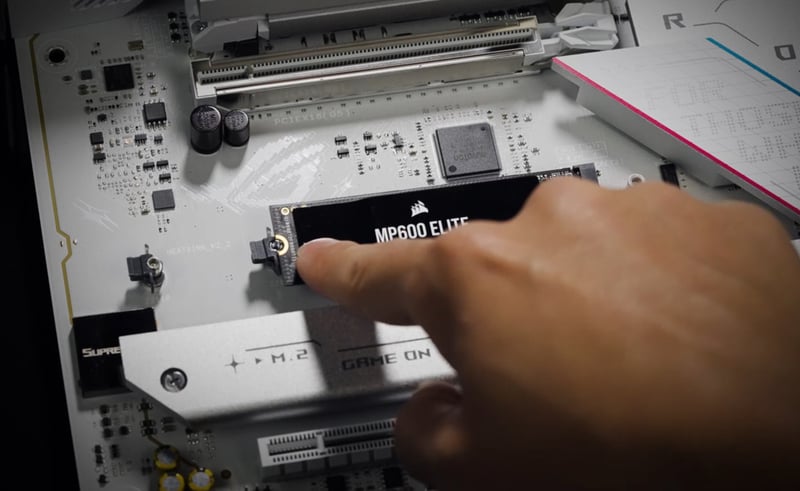

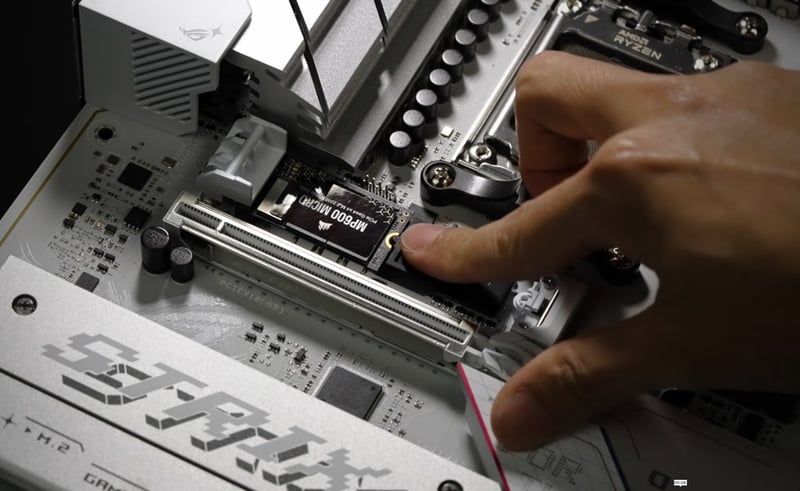

NEW M.2 Q-LATCH
The new Q-Latch design allows for tool-free installation or removal of M.2 SSDs with just one press.
M.2 Q-SLIDE
This new sliding M.2 latch design supports sizes 2242, 2260 and 2280 for easy device installation.

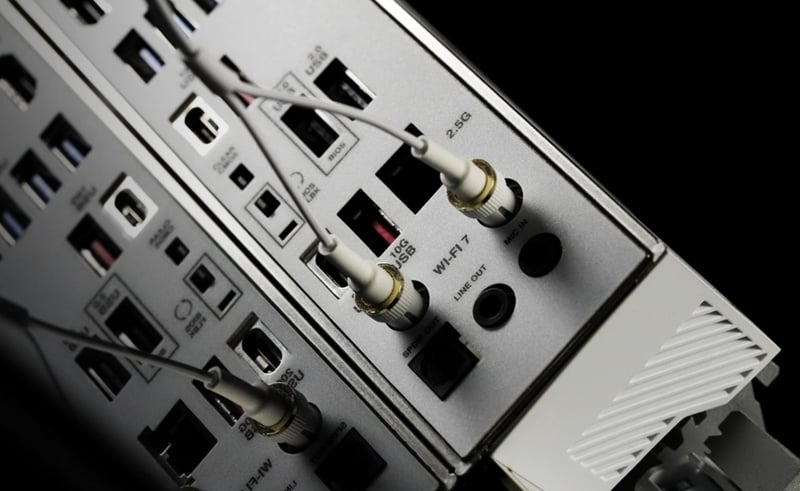

Q-ANTENNA
With Q-Antenna, attaching a WiFi antenna to your PC is now easy and fast. Instead of slowly rotating two fasteners until they finally lock in, they just snap into place. Less hassle, and more consistent performance.
PCIE 5.0
Fully embracing the new standard, the Strix B850-A offers end-to-end PCIe 5.0 support. The topmost x16 expansion slot is Gen 5-ready, and is protected with a SafeSlot retention bracket to bear the weight of the latest graphics cards. One of the onboard M.2 slots is geared for blistering 16 GB/s read and write speeds thanks to its PCIe 5.0 interface, while all the rest can deliver still-impressive 8 GB/s transfers. Every M.2 slot is covered with substantial heatsinks to dispatch the heat of next-gen drives.

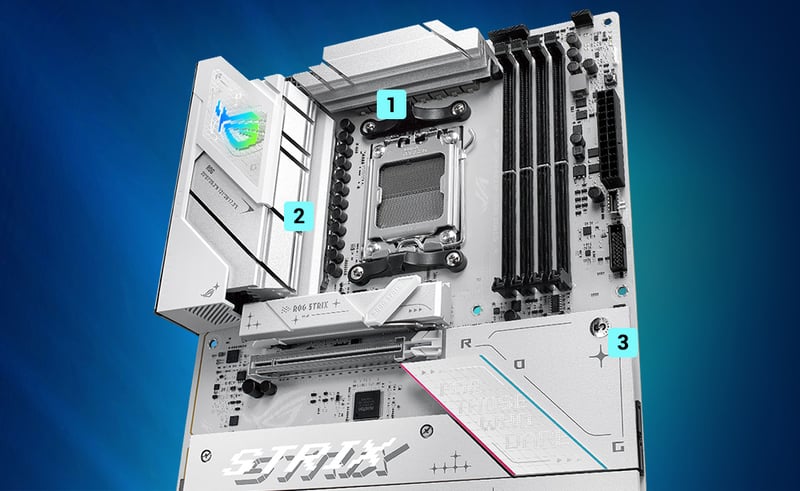

Power Design
-
POWER ARCHITECTURE The VRM features 14+2+2 power stages, each rated to handle 80 amps
-
ALLOY CHOKES AND DURABLE CAPACITORS Hi-end chokes and durable capacitors are engineered to resist extreme temperatures, enabling performance that exceeds industry standards.
-
EIGHT-LAYER PCB A multi-layered printed circuit board design quickly dissipates heat around the voltage regulators to improve overall system stability and provide the CPU with more overclocking headroom.
MEMORY

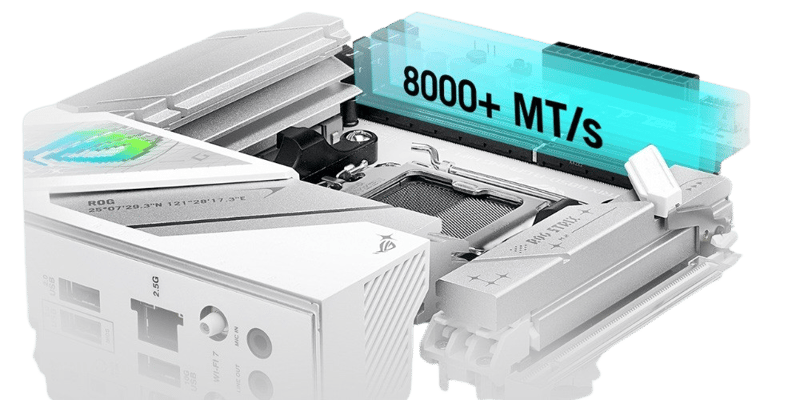

DDR5 Strength
For those who want to fly past stock DDR5 speeds, the Strix B850-A is primed and ready for enthusiast-grade kits, courtesy of vast AMD Extended Profiles for Overclocking (EXPO) support. Seasoned veterans can further tweak performance via the extensive array of settings in the UEFI.

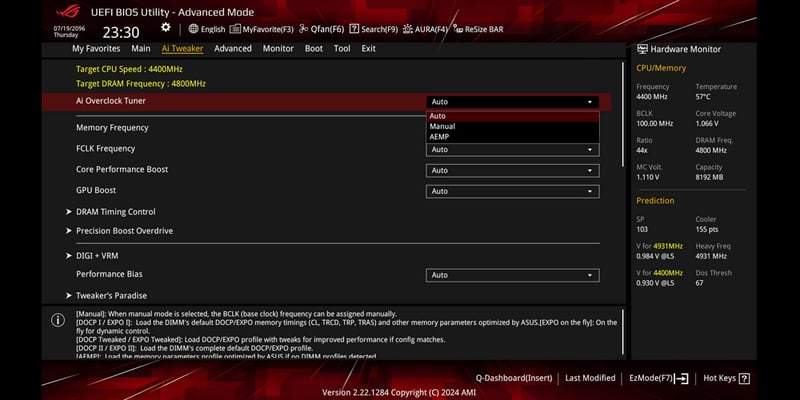

AEMP
ASUS Enhanced Memory Profile (AEMP) is an exclusive firmware feature for PMIC-restricted memory modules. AEMP automatically detects the memory chips on your kit and then presents optimized frequency, timing and voltage profiles that you can effortlessly apply to unleash performance.

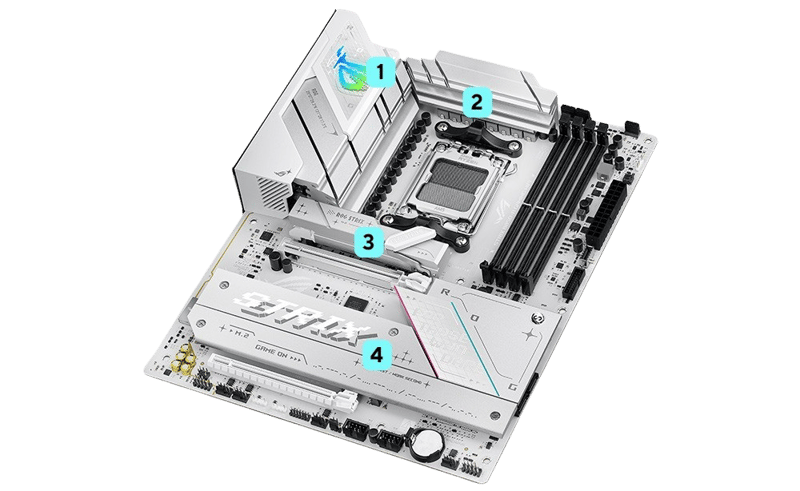

COOLING
-
VRM HEATSINK ARRAY Two VRM heatsinks, one expanding underneath the I/O shroud, provide ample surface area and mass to handle the power needs of high-performance AMD Ryzen™ 9000 Series processors
-
High-conductivity Thermal Pads High-quality thermal pads are utilized between power stages and heatsinks, helping to improve heat transfer and reduce VRM operating temperatures.
-
M.2 BACKPLATE An integrated backplate helps ensure that high-performance drives can deliver peak performance, even when airflow is restricted.
-
M.2 HEATSINKS Heatsinks cover every slot to help keep onboard NVME SSDs at optimal temperatures for consistent performance and reliability.

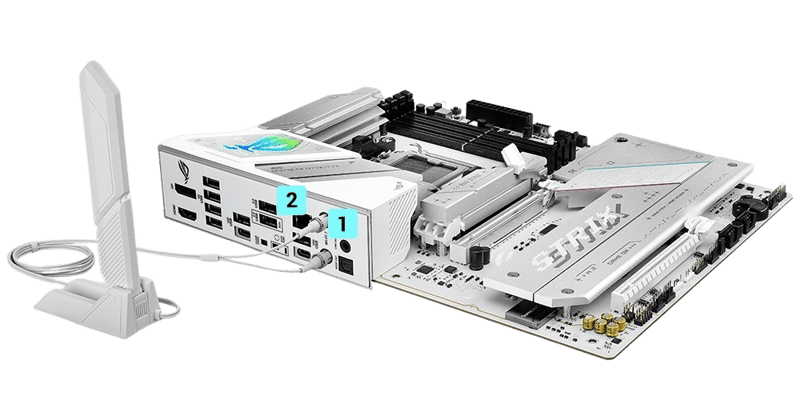

NETWORKING
- WIFI 7
The revolutionary WiFi 7 is faster than standard WiFi 6*, thanks to tech like 160 MHz channels** on the 6GHz band and 4K QAM*. Multi-Link Operation (MLO) provides a more stable WiFi connection and lower latency, unlocking the realms of the unknown in gaming, streaming and industrial IoT. Learn more about https://www.asus.com/content/wifi7/
WiFi 7 features require onboard WiFi chipset, WiFi AP, and WiFi 7-supported operating systems to support the corresponding features. Specifications vary by model.
- Intel 2.5Gb Ethernet
Onboard Intel® 2.5Gb Ethernet gives your wired connection a boost, with speeds that are 2.5 times faster than standard Ethernet connections for speedy file transfers, low-latency gaming, and high-res video streaming.
ASUS WiFi Q-Antenna
Dual transceivers support the 2.4, 5 and 6 GHz bands to enable faster throughput, with directional sensitivity to improve signal quality and cover greater distances.
Disclaimer: The availability of WiFi 7 varies according to regional regulations.
USB 20Gbps Port
A USB 20Gbps Type-C® port offers speedy data transfers up to 20Gbps.
Allmänt
- Chipset
- AMD B850
- Överklockningsstöd
- Ja
- Processorsocket
- AMD AM5
- Formfaktor
- ATX
Minne
- Internminnestyp
- DDR5
- Minneshastighet (Standard)
- 5 200 MHz
- Minneshastighet (OC)
- 8 000 MHz
- Antalet platser
- 4 st
- Maximalt minne
- 192 GB
- Kanaler
- Dual channel
Expansionsplatser
- PCI Express generation
- PCIe 5.0, PCIe 3.0, PCIe 4.0
- PCI Express x16
- 2 st
- CrossFire
- Nej
- SLI
- Nej
USB bakpanel
- USB 2.0
- 2 st
- USB 3.0/3.1 Gen1
- 4 st
- USB 3.1 Gen 2
- 2 st
- USB 3.1 Gen 2 Type-C
- 1 st
- USB 3.2 Gen 2x2 Type-C
- 1 st
SATA
- SATA 6.0 Gbit/s
- 2 st
M.2
- Antal M.2
- 4 st
- M.2 storlek plats 1
- 2242, 2260, 2280
- M.2 gränssnitt plats 1
- PCIE, PCIE5, PCIE4
- M.2 key plats 1
- M
- M.2 storlek plats 2
- 2280, 22110
- M.2 gränssnitt plats 2
- PCIE4, PCIE
- M.2 key plats 2
- M
- M.2 storlek plats 3
- 2280
- M.2 gränssnitt plats 3
- PCIE, PCIE4
- M.2 key plats 3
- M
- M.2 storlek plats 4
- 2280
- M.2 gränssnitt plats 4
- PCIE4, PCIE
- M.2 key plats 4
- M
Övrig lagring
- Intel Optane Memory Ready
- Nej
RAID
- RAID-stöd
- Ja
- RAID nivå
- RAID 0, RAID 1, RAID 5, RAID 10
Nätverk
- Trådat nätverk
- 1 st
- Trådad hastighet
- 2.5 Gbit/s
- Nätverkskontroller
- Intel 2.5 GbE
- Trådlöst nätverk
- Ja
- Trådlös standard
- 802.11 a/b/g/n/ac/ax/be
- Bluetooth
- Ja
- Bluetooth standard
- 5.4
Grafik
- Integrerad grafik
- Ja, (Kräver CPU med integrerad grafik)
- HDMI-utgång
- 1 st
- DisplayPort-utgång
- 1 st
Ljud
- Ljudkort
- ROG SupremeFX ALC4080
- Analoga utgångar
- 1st
- Analoga ingångar
- Ja
- Optisk S/PDIF
- Ja
Interna kontakter
- USB 2.0
- 4 st, 2 st interna kontakter
- USB 3.0/3.1 Gen1
- 2 st, 1 st interna kontakter
- USB 3.1 Gen2 Type-C
- 1 st, 1 st interna kontakter
- Thunderbolt
- Ja, (USB4)
- 4-pin fläkt
- 7 st
- RGB-Header
- Ja
- Strömkontakter ATX/EPS 12V
- 2 st 8-pin
Övrigt
- Medföljande SATA 6 Gb/s
- 2 st
- Längd
- 305 mm
- Bredd
- 244 mm
- Tillverkarens garanti
- 3 år
Artikelnummer
- Paketbredd
- 35,7 cm
- Pakethöjd
- 7,8 cm
- Paketlängd
- 28,1 cm
- Paketvikt
- 2,26 kg
- Vårt ArtNr
- 1904394
- Tillverkarens ArtNr
- 90MB1J50-M0EAY0
- Upplagd
- 2025-01-06 15:00
- Produktblad
Här kan du ställa frågor om produktens funktioner och kompabilitet. Vi uppmanar vårt kunniga community att bidra med sin kunskap genom att svara på frågorna.
Om du är i behov av personlig rådgivning alternativt har generella frågor om exempelvis pris, leveranstid etc. så är du istället varmt välkommen att kontakta vår kundservice.
Vi förbehåller oss rätten till att ta bort ej relevanta frågor.
klarar detta kortet gtssa minnen Kingston 32GB (2x16GB) DDR5 6400MHz CL32 FURY Beast RGB Vit AMD EXPO/Intel XMP 3.0
ASUS ROG Strix B850-A Gaming WIFI
1
Hej Kent, Ramminnet du nämner är kompatibelt ihop med detta moderkortet och en 9000-series AMD Ryzen Processor, därmed går det bra att kombinera. Du har även möjligheten att aktivera EXPO profilen för ramminnet i BIOS för att utvinna 6400MHz i minneshastighet. Notera däremot att moderkortstillverkaren inte har testat detta ramminnet samt moderkortet ihop med en 8000/7000-series AMD Ryzen Processor, därmed finns det risk att datorn går instabilt när man försöker använda denna kombinationen. För att ta reda på vilka ramminnen som har testats ihop med moderkortet rekommenderar jag att besöka ASUS QVL lista som finns länkad nedanför. Välj vilken serie av AMD Ryzen processor du önskar kombinera och sök på tillverkarens artikelnummer för diverse ramminnen, får man upp ett resultat på ramminnet man söker på har det testats om ej avrådar jag att använda ramminnet. QVL Länk: https://rog.asus.com/motherboards/rog-strix/rog-strix-b850-a-gaming-wifi/helpdesk_qvl_memory/ Vänligen,
2
