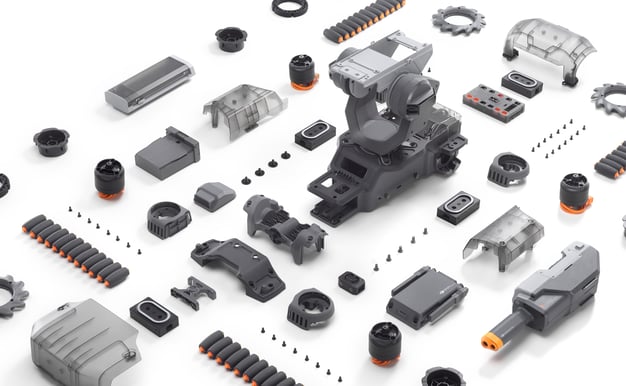

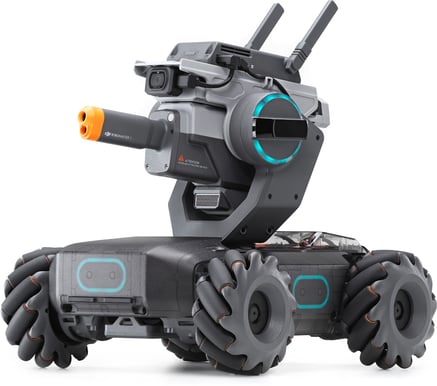

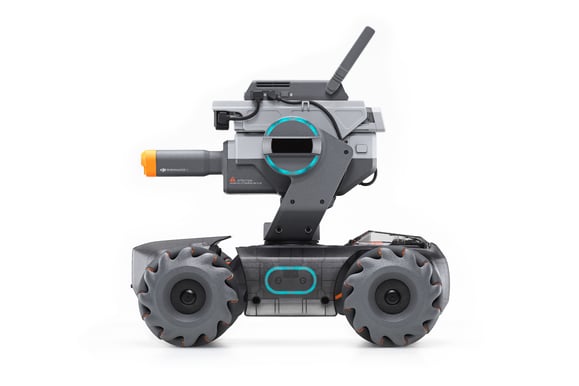

DJI Robomaster S1
Art.nr: 6601070 | CP.RM.00000114.01
13 st bilder och 0 st videor.
Snabbfakta
- Vikt3,3 kg
Lagerinformation
Webblager
Utgått!
Utgått!
Butikslager
- Göteborg, RingönUtgått!
- Göteborg, SisjönUtgått!
- Stockholm, SveavägenUtgått!
- Stockholm, MedborgarplatsenUtgått!
- Malmö, Lilla NygatanUtgått!
Köpinformation
– kr
Denna produkt har utgått!
Denna produkt har utgått!
Recensioner (0)
Flikar - Mer info (markerad), Specifikationer, Jämför, Frågor och svar
Ytterligare specifikationer
Camera
FOV 120°
Max Still Photo Resolution 2560×1440
Max Video Resolution FHD: 1080/30fps HD: 720/30fps
Max Video Bitrate 16 Mbps
Photo Format JPEG
Video Format MP4
Sensor CMOS 1/4"; Effective pixels: 5 MP
Operating Temperature Range -10 to 40 °C (14 to 104 °F)
Narrow Infrared Units
Effective Range 6 m (in indoor lighting conditions)
Effective Area Varies from 10° to 40°
Effective area decreases as distance from the target increases.
Wide Infrared Units
Effective Range 3 m (in indoor lighting conditions)
Effective Width 360° (in indoor lighting conditions)
Hit Detector
Detection Requirements For the Hit Detector to be activated, the following conditions must be met: Gel bead diameter = 6mm, launching speed =20m/s, and the angle between the hit direction and hit detector plane is no less than 45°.
Maximum Detection Frequency 15 Hz
S1
Weight Approx. 3.3 kg
Dimensions 320×240×270 mm (length × width × height)
Chassis Speed Range 0-3.5 m/s (forward) 0-2.5 m/s (backward) 0-2.8 m/s (sideways)
Max Chassis Rotational Speed 600°/s
M3508I Brushless Motor
Max Rotational Speed 1000 rpm
Max Torque 0.25N·m
Max Output Power 19 W
Operating Temperature Range -10 to 40 °C (14 to 104 °F)
Driver FOC
Control Method Closed-loop speed control
Protection Overvoltage protection, Overtemperature protection, Soft-start, Short-circuit protection, Chip and sensor anomaly detection
Blaster
Controllable Launching Frequency 1-8/s
Max Launching Frequency 10/s
Initial Launching Speed Approx. 26 m/s
Average Load Approx. 430
Gimbal
Controllable Range Pitch: -20° to +35°, Yaw: ±250°
Mechanical Range Pitch: -24° to +41°, Yaw: ±270°
Max Rotational Speed 540°/s
Vibration Control Precision (on the flat surface and with the Blaster idle) ±0.02°
Intelligent Controller Latency Connection via Wi-Fi: 80-100ms Connection via Router: 100-120ms (unobstructed, free of interference)
Live View Quality 720p/30fps
Max Live View Bitrate 6 Mbps
Operating Frequency [3] 2.4 GHz, 5.1 GHz, 5.8 GHz
Operating Mode Connection via Wi-Fi, Connection via Router
Max Transmission Distance
Connection via Router:
FCC, 2.4 GHz 190 m,5.8 GHz 300 m CE, 2.4 GHz 180 m,5.8 GHz 70 m SRRC, 2.4 GHz 180 m,5.8 GHz 300 m MIC,2.4 GHz 180 m
Transmission Power (EIRP)
2.400-2.4835 GHz, FCC: =30 dBm, SRRC: =20 dBm, CE: =19 dBm, MIC: =20 dBm
5.150-5.250 GHz, FCC: =30 dBm, SRRC: =23 dBm, CE: =20 dBm, MIC: =23 dBm
5.725-5.850 GHz, FCC: =30dBm, SRRC: =30dBm, CE: =14 dBm,
Transmission Standard
IEEE802.11a/b/g/n
Intelligent Battery
Capacity 2400 mAh
Nominal Charging Voltage 10.8 V
Maximum Charging Voltage 12.6 V
Battery Type LiPo 3S
Energy 25.92 Wh
Weight 169 g
Operating Temperature Range -10 to 40 °C (14 to 104 °F)
Charging Temperature Range 5 to 40 °C (41 to 104 °F)
Maximum Charging Power 29 W
Battery Life in Use 35 minutes (measured at a constant speed of 2 m/s on a flat surface)
Battery Life on Standby Approx. 100 minutes
Charger
Input 100-240 V, 50-60Hz, 1A
Output Port: 12.6 V=0.8A or 12.6 V=2.2A
Voltage 12.6 V
Rated Voltage 28 W
Gel Bead
Diameter 5.9-6.8 mm
Weight 0.12-0.17 g
App
App RoboMaster
iOS iOS 10.0.2 or later
Android Android 5.0 or later
Router
Recommended Routers TP-Link Archer C7; NETGEAR X6S (International)
Recommended outdoor power supply solution for routers Laptop Power Bank (match the input power of the router)
microSD card
Supported SD Cards Supports microSD cards with a capacity up to 64GB
Drönare
- Vikt
- 3,3 kg
Kamera
- Bildsensor
- CMOS 1/4?; Effective pixels: 5 MP
- Videoupplösning
- FHD: 1080/30fps, HD: 720/30fps
- Videoformat
- MP4, Bildformat: JPEG
- Bitrate
- 16 Mbps
Gimbal
- Bildstabilisering
- Ja
Batteri
- Batterityp
- LiPo 3S, 2400 mAh
Artikelnummer
- Paketbredd
- 32,4 cm
- Pakethöjd
- 25,9 cm
- Paketlängd
- 37,7 cm
- Paketvikt
- 5,1 kg
- Vårt ArtNr
- 6601070
- Tillverkarens ArtNr
- CP.RM.00000114.01
- Upplagd
- 2019-10-23 14:25
- Produktblad
- Produktblad
- 6601070_0.pdf
Här kan du ställa frågor om produktens funktioner och kompabilitet. Vi uppmanar vårt kunniga community att bidra med sin kunskap genom att svara på frågorna.
Om du är i behov av personlig rådgivning alternativt har generella frågor om exempelvis pris, leveranstid etc. så är du istället varmt välkommen att kontakta vår kundservice.
Vi förbehåller oss rätten till att ta bort ej relevanta frågor.
Det finns ännu inga frågor på den här produkten
